Bar, Tube & Pipe Mills

• Non-contact, high-speed, solid-state laser speed and length measurement with no slippage, drift or mechanical wear and greatly reduced maintenance compared with contact wheel / roller systems.
• Unidirectional speed and length measurement.
• UKAS-traceable calibration; accuracy better than 0.05% and repeatability better than 0.02%.
• Rugged industrial design for use in harsh factory environments.
• Available fitted with industry-standard communcations interfaces for easy integration with PLCs and production line equipment.
• Excellent value with low cost of ownership.
• Harsh environment enclosures are available from Proton Products on request.

Proton Products InteliSENS^® SLM Series non-contact, unidirectional speed and length gauges provide extremely accurate speed and length measurements for metals industry applications. They are available with extended stand-off distances and greater depth-of-fields than the standard InteliSENS^® SL Series gauges, which allows them to be used to measure very high temperature objects such as in hot-rolling processes.

Applications requiring a precise cut-to-length process benefit from the non-slip and highly accurate laser measurement technique which reduces scrap, increases uptime and improves material yield by eliminating product “Give Away” or “Short Length” claims.

InteliSENS^® SLM Series gauges are money-saving, direct replacements for traditional problematic and high-maintenance contact wheel and roller-type devices and are extremely easy to install and operate. Integration with production line controllers such as PLCs is eased by the availability of a wide variety of industry standard communications interfaces.

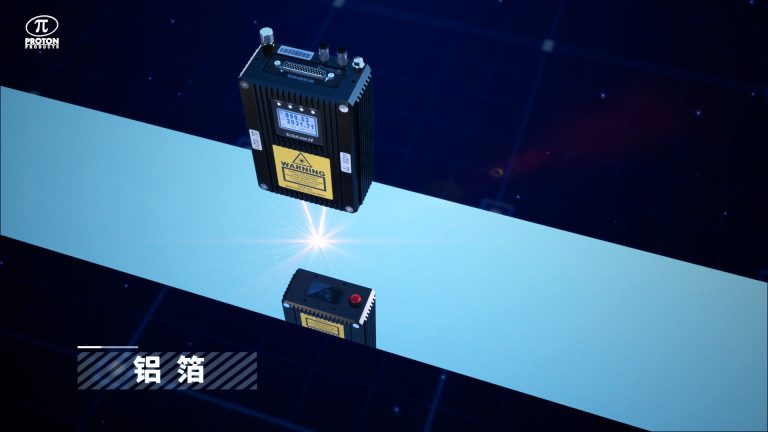

Proton Products InteliSENS^® SLM series speed and length gauges illuminate the measured surface with an interference pattern created by the intersection of two laser beams. The alternating bright and dark interference fringes modulate the light scattered by the object with a frequency proportional to the object speed. This scattered light is detected by a photodiode and the electrical signal digitally processed to determine the frequency and hence the speed. Object length is then calculated by integrating the speed measurement over time.

*Other stand-off distances are available on request.

*only valid if the measured object is positioned within the central 20% of the depth-of-field.
