InteliSENS® SL Series

Speed & Length Measurement

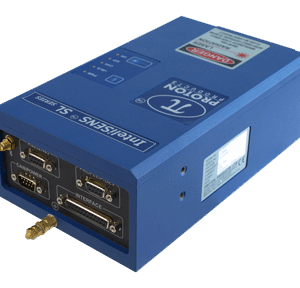

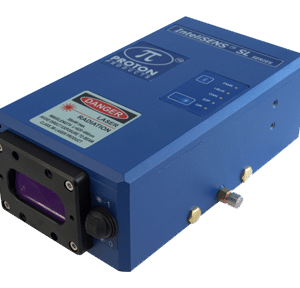

Proton Products InteliSENS® SL Series non-contact, unidirectional speed and length gauges provide extremely accurate speed and length measurements in almost any production environment. Production processes for wire, cable, web products, woven and non-woven materials, paper, plastic film, tapes, building materials, floorings and labelling can all be measured using the laser Doppler method.

分类： Speed and length measurement

技术规格
Accessories

Features

Non-contact, high-speed, solid-state laser speed and length measurement with no slippage, drift, mechanical wear or maintenance compared with contact wheel / roller systems.
Unidirectional speed and length measurement.
UKAS-traceable calibration; accuracy better than 0.05% and repeatability better than 0.02%.
Rugged industrial design for use in harsh factory environments.
Available fitted with industry-standard communcations interfaces for easy integration with PLCs and production line equipment.
Excellent value with low cost of ownership.

Accessories

Click here for information on accessories for the InteliSENS^® SL Series of laser speed and length gauges.

Introduction

Proton Products InteliSENS^® SL Series non-contact, unidirectional speed and length gauges provide extremely accurate speed and length measurements in almost any production environment.

Production processes for wire, cable, web products, woven and non-woven materials, paper, plastic film, tapes, building materials, floorings and labelling can all be measured using the laser Doppler method.

Applications requiring a precise cut-to-length process benefit from the non-slip and highly accurate laser measurement technique which reduces scrap, increases uptime and improves material yield by eliminating product “Give Away” or “Short Length” claims.

InteliSENS^® SL Series gauges are money-saving, direct replacements for traditional problematic and high-maintenance contact wheel and roller-type devices and are extremely easy to install and operate. Integration with production line controllers such as PLCs is eased by the availability of a wide variety of industry standard communications interfaces.

Operating principle – Laser surface velocimeter

Proton Products InteliSENS^® SL series speed and length gauges illuminate the measured surface with an interference pattern created by the intersection of two laser beams. The alternating bright and dark interference fringes modulate the light scattered by the object with a frequency proportional to the object speed. This scattered light is detected by a photodiode and the electrical signal digitally processed to determine the frequency and hence the speed. Object length is then calculated by integrating the speed measurement over time.

Specifications

型号	SL1525	SL3060	SL6060	单位
隔距	150	300	600	mm
隔距	5.91	11.8	23.6	英寸
景深	25	60	60	mm
景深	0.98	2.36	2.36	英寸
最低速度	0.1	0.2	0.2	m/min
最低速度	0.3	0.6	0.6	ft/min
最高速度	2500	5000	5000	m/min
最高速度	8200	16400	16400	ft/min

技术规范	最小值	典型值	最大值	单位
精度*			0.05	%
可重复性			0.02	%
加速度			500	m/s²
内部测量速率			100	kHz
测值输出间隔	40			µs
激光光斑直径			3	mm

工作温度	5		45	°C
工作温度	41		113	°F
环保级别			IP67

重量			3	kg
重量			6.6	lb
长度			230	mm
长度			9.06	英寸
宽度			130	mm
宽度			5.12	英寸
高度			75	mm
高度			2.95	英寸

电源	15	24	25	VDC
耗电			20	W

*only valid if the measured object is positioned within the central 20% of the depth-of-field.

测量单位（终端用户配置）	速度	米/分钟	英尺/分钟
	长度	米	英尺	码
激光安全控制单元	激光	外部闭合触点使能激光二极管。
	快门	外部闭合触点使能激光二极管。
2×逻辑输入（终端用户可配置）	电气	最高输入电压：+24Vdc
	功能	长度预设	显示保持	长度保持
		速度保持	方向	暂停
3×继电器输出（终端用户配置）	3×继电器输出（终端用户配置）	隔离浮动继电器触点
		最高电压：50Vdc	最大电流：0.5A
	功能	测长仪OK	激光恒温	快门打开	激光开启
		测量	预设长度1	预设长度1
3×脉冲输出（终端用户配置）	电气	光隔离差分对
		所处电压：5V or user supplied (up to 24V)或用户提供（最高24V）
		最大频率: 250kHz
	功能	正交	指数
模拟输出（终端用户配置）	电气	输出电压：0 ～ +10V（终端用户自定）
	功能	速度	读数良好
CANbus通信		与博腾产品的一个备选 AiG2接口显示单元连接。
串行通信		RS-232	RS-422 / 485
备选通信接口（工厂安装，任选一个）		过程现场总线	过程现场总线	工业网
备选无线通信接口（工厂安装，任选一个）		蓝牙
其他选项		用于方向检测的前进/后退滚轮

Accessories

SL/SLR Accessories

Interface display modules

AiG1

Display module

Proton part number: 00001MC970
- Connects via the RS-232 port.
- Displays measured speed, length and preset length.
- Provides setting of preset length and speed limits.

CAN-bus cable

For connecting the gauge to an AiG2 interface display unit

* Available in 5, 10, 15, 20, 30 and 50m lengths.

型号	长度/米	零件号
CAN 9DD-005	5	00041CB005
CAN 9DD-010	10	00041CB010
CAN 9DD-015	15	00041CB015
CAN 9DD-020	20	00041CB020
CAN 9DD-030	30	00041CB030
CAN 9DD-050	50	00041CB050

AiG2-SL

Display module

Proton part number: 00041MC045
- Connects via the CAN-bus port.
- Displays measured speed and length.
- Provides menu-based setting of all parameters.
- Bright vacuum fluorescent dot matrix display.
- Mounts directly on the gauge body or remotely via an extension cable.

CS1G-SL

Display, PSU, break-out box and laser safety key switch

Proton part number: 00018MC140
- Connects via the “INTERFACE” connector and RS-232 port.
- Displays measured speed, length and preset length.
- Supplies electrical power to the gauge.
- Provides screw terminal access to all “INTERFACE” connector input and output pins.
- Provides a laser enable key switch for compliance with laser safety requirements.

Power supplies and connectivity

PSU-DT

Mains power adapter

Proton part number: 0001MC264
- Connects via the DB25 “INTERFACE” connector.
- Supplies electrical power to the gauge.
- Input voltage range: 90 – 260 VAC @ 45 – 65 Hz.

Terminal Strip-DIN

Power supply, break-out box and laser safety key switch

Proton part number: 00041MC730
- Breaks out the DB25 “INTERFACE” connector to a DIN rail mountable set of screw terminals.

RJ45 to DB9 converter

Power supply, break-out box and laser safety key switch

Proton part number: 00003CM229
- For connecting RJ45 8P8C terminated cables to the DB9 EtherNet / IP port.

PSU-BOB-SL

Power supply, break-out box and laser safety key switch

Proton part number: 00041MC360
- Connects via the DB25 “INTERFACE” connector.
- Supplies 24VDC electrical power to the gauge.
- Provides screw terminal access to all “INTERFACE” connector input and output pins.
- End user cables are sealed with three cable glands.
- Provides a laser enable key switch for compliance with laser safety requirements.
- Input voltage range: 90 – 260 VAC @ 45 – 65 Hz.

DB25 Cable

For connecting the gauge “INTERFACE” port to a PSU-BOB-SL, Terminal Strip-DIN or CS1G-SL

Proton part number: 00041MC360
* Available in 3, 5, 10, 20 and 30 m lengths.

型号	长度/米	零件号
BOB-003	3	00043MC021
BOB-005	5	00041CT005
BOB-010	10	00041CT010
BOB-020	20	00041CT020
BOB-030	30	00041CT030

Direction sensing

FR Roller

Direction Wheel

Proton part number: 00033MC060
- For connection to Proton SL gauges for direction sensing (not applicable to SLR gauges).
- The roller is placed in contact with the object surface to detection direction of motion.

Software

PCIS_SL

PC Interface Software

Proton part number: 00020SW100
- PC-based software package.
- User-friendly graphical user interface.
- Displays all measurements.
- Provides menu-based setting of all parameters.
- Provides trending, data logging, presets and alarms.
- Gauge to PC connection via RS-232 or optional RS-232-to-USB interface cable (RSCon).

Mountings and laser safety

Tripod

Portable tripod and boom mount

Proton part number: 00043MC003
- Suitable for gauges that need to be moved from location to location e.g. as a calibration reference for mechanical encoders.
- Based on a light weight, portable industrial tripod and extendable aluminium boom (00020TL003).
- Two swivel joints (00043MC004) permit easy angular alignment of the boom and the gauge.
- A connection plate (00020TL605) is included for attachment to gauges not fitted with a UNC 3/8” thread.

PHA-1 3D ADJ

3-axis Precision height adjuster

Proton part number: 00030MC140
- For precision height adjustment of the laser beam measurement zone to the object under measurement using a hand wheel and lead screw.
- Height adjustment range accommodates object diameters from 0.3 mm (0.012”) to 200 mm (7.88”).
- Has two additional adjustment axes for aligning the roll and yaw for maximum measurement accuracy.

SL Laser Guard PHA-1

Laser safety enclosure for PHA-1 (with side skirts)

Proton part number: 00020MC230 (with side skirts)
- Mounts to a PHA-1 to prevent accidental viewing of direct and reflected laser beams.
- Integrated interlock switch engages the gauge laser shutter whenever the guard cover is opened.
- Side skirts contain reflected laser radiation from highly-reflective objects.

PHA-1

Precision height adjuster

Proton part number: 00030MC200
- For precision height adjustment of the laser beam to the object under measurement using a hand wheel and lead screw.
- Adjustment range accommodates object diameters from 0.05 mm (0.002”) to 200 mm (7.88”).

SL Laser Guard PHA-1

Laser safety enclosure for PHA-1

Proton part number: 00020MC250
- Mounts to a PHA-1 to prevent accidental viewing of direct and reflected laser beams.
- Integrated interlock switch engages the gauge laser shutter whenever the guard cover is opened.

PHA-2

Precision cable / wire aligner

Proton part number: 00020MC900
- For precision alignment of the laser beam measurement zone to cables or wires.
- Provides two adjustable cable / wire guides.
- Adjustment range accommodates object diameters from 0.3 mm (0.012”) to 10 mm (0.393”).

SL Laser Guard PHA-2

Laser safety enclosure for PHA-1

Proton part number: 00020MC260
- Mounts to a PHA-2 to prevent accidental viewing of direct and reflected laser beams.
- Integrated interlock switch engages the gauge laser shutter whenever the guard cover is opened.

Harsh and extreme environment accessories

Air wipe SLMKII

Proton part number: 00041MC240
- Provides a constant flow of clean air over the laser window to disperse dust, debris or steam.
- Easily detached by a quick release screw for cleaning.
- Provides an 8 mm push fit tube fitting to connect to a clean air source.

Air / water inlet elbow connector

Proton part number: 00002CM696
- For attaching cooling air or water connection.
- 90° bend, freely rotatable.
- 8mm push fit pipe connector.

Calibration accessories

SL Calibration Case

Portable on-site calibration system

Proton part number: 00020TL750
- Motorised aluminium calibration wheel mounted in a rugged aluminium frame carry case.
- Displays speed and length.
