Speed & Length Measurement

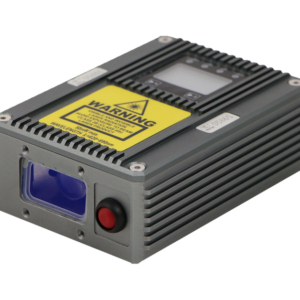

The InteliSENS® SLRmini-W Series non-contact speed and length measurement gauge has a Wide angle lens making it ideal for the measurement of curved surface products in “roll to roll” or “cut to length” processes. Wire, Cable, Hose, Tube, Pipe are good examples. Applications where speed measurement is critical for drive control or where length measurement is critical for product quality will benefit from the increased accuracy of Laser Doppler Speed and Length Measurement.
Get the Proton MDIS App

  • No Slip, No Wear, No Marking of your product
  • No Moving Parts, Increased Reliability and MTBF
  • Incredibly small and easy to install
  • Pulse outputs like your encoder
  • Digital Communications you need
  • Stand Alone Measuring Device or Fully Integrated to PLC
  • Zero Speed and Automatic Direction Detection

Download Brochure

Performance

 SLRmini 1220-WSLRmini 3060-W
Stand Off Distance120mm
4.74”
300mm
11.81”
Depth of Field20mm
0.79”
60mm
2.36”
Minimum Speed0 m/min
0 ft/min
0 m/min
0 /ft/min
Maximum Speed+ - 2000 m/min
+ - 6562 ft/min
+ - 5000 m/min
+ - 16404 ft/min

Accuracy

Factory Calibrated to better than 0.05% within the central 20% of the Depth of Field.
Repeatability of 0.02%

Measurement

Maximum Acceleration Rate of 1000m/s2 (3280ft/s2)
Measurement Rate Up to 50,000/sec (20us)

Units

Speed Measurement selectable m/min, ft/min, yd/min
Length Measurement selectable m, ft, inch, yd

Material Present

For part length measurement

Zero Speed

The SLRmini Series gauges can detect true zero speed as the product comes to stop

Direction Detection

Automatic Direction Detection is ideal if you product rewinds, relaxes when stopped or has vibration in the stopped condition. The SLRmini Series of gauges will cancel forward reverse movements to maintain zero speed and length.

Connectivity

Pulse Outputs x 3

RS422 Differential Pair Pulse Outputs Configurable as Quadrature or Index
Default Output 5vdc or User Input to 24vdc Max
2MHz Max Pulse Output Rate

Logic Input x 2

Non Isolated, Normally Open (High State) Pulldown Logic Inputs
Maximum Voltage: +/-30V Minimum Current 3mA
Reverse Direction, Length Hold, Display Hold, Speed Hold, Total Length
Reset, End of Reel / Batch Length Reset

Relay Outputs x 3

Maximum Voltage 25Vdc Current 0.1A
Gauge Ok, Object Detected, Gauge Measuring, Good Readings Low,
Gauge Temperature High, Preset Length 1, Preset Length 2

CANbus x 1

RS232 Modbus Communications
USB using RS232 - USB Converter Cable
ZM4000 Printer Communications

CANbus x 1

Connects to Proton Products CDi4 Display

i-BUS x 1

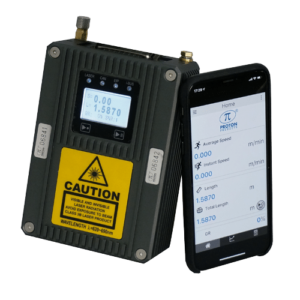

Connect to a PC or Mobile Device and use the Proton Products Gauge
App available for iOS and Android. Ideal for gauge configuration and
diagnostics.

i-BUS x 1

Ethernet TCP/IP Modbus is the Default Communication. Connect to a PLC using optional ProfiBus, ProfiNet, EtherNet I/P or DeviceNet.

Image Image Image Image

Laser Doppler

Class 3B Visible Laser.
Wavelength 650 - 670 nm, typically 658 nm with a beam diameter of 3mm (0.12”)
Total emitted power 40mW. Power Density at Stand Off Distance 1120mW/cm2

Laser Doppler

Electrical and Operating Requirements

Power Supply
15 - 28 Vdc

Power Consumption
15 Watts

Operating Temperature
5°C - 40°C (41°F-104°F)*

*See Accessories for High-Temperature protection options

Environmental Protection
IP 67


Size and Weight


Height
142mm (5.6”)

Width
104mm (4.1”)

Thickness
53mm (2.1”)

Weight
3kg (6.6lbs)
