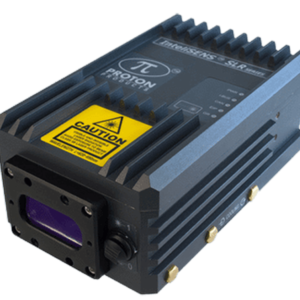

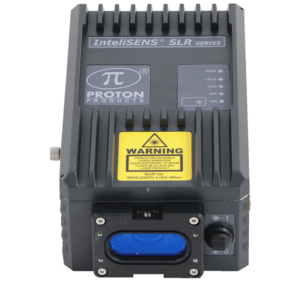

The InteliSENS® SLRM Series of non-contact, bidirectional speed and length gauges for Metals Applications have Zero Speed and Material Present capabilities as standard functions. Ready for the Harshest environments, InteliSENS® SLRM Gauge Heads are available with Long “Stand off” Distances and Large “Depth of Field” Ranges.
- High -Temperature Applications Continuous Casting and Hot-Rolling Processes

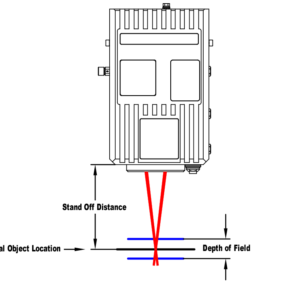

- Extended Stand-off Distances and Greater Depth-of-Fields
- Automatic Direction Detection
- Zero Speed Measurement
- Material Present Detection
SLRM Performance
Material Present
The SLRM Series of gauges detect Material Present even if the material is not moving. The Material Present Signal can be transmitted digitally or by relay output.
Direction Detection
Automatic Direction Detection of material and the ability to count in positive and negative directions is standard in all SLRM Series Gauges.
Zero Speed
SLRM Series Gauges can measure down and through Zero Speed as the material stops and or changes direction.
Accuracy
Factory Calibrated to better than 0.05% within the central 20% of the Depth of Field.
Repeatability of 0.02%
Measurement
Maximum Acceleration Rate of 500m/s2 (1.6ft/s2)
Measurement Rate Up to 25,000/sec
Update Rate Upto 0.04ms (40um)
Units
Speed Measurement selectable m/min, ft/min, yds/min
Length Measurement selectable m, ft, inch, yd

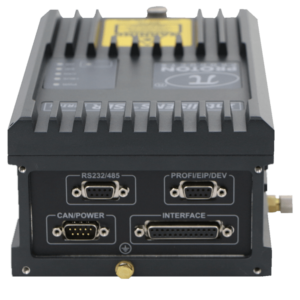

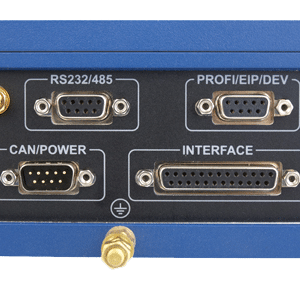

Connectivity
3 Pulse Outputs
Default Output 5vdc or User Input to 24vdc Max
Configurable as Quadrature or Index
Opto-Isolated Differential Outputs
1 MHz Max Pulse Output Rate
1 Analogue Output
Output Voltage: 0 to +10v (scaleable)
Selectable Functions: Speed, Good Readings
3 Relay Outputs
Maximum voltage: 50vdc Maximum current: 0.5A
Isolated, floating relay contacts
Selectable Functions: Gauge Ok, Shutter Open, Laser On, Laser
at Temperature, Material Present, Preset Length 1, Preset Length 2
5 Digital Inputs
Max Input Voltage 30vdc
2 Fixed Inputs - Laser Enabled and Laser Shutter
3 Selectable Inputs - Length Hold, Speed Hold, Display Hold, Reset Length or Reset Reel Number, End of Reel
1 Serial I/O
Selectable RS232
1 CANBUS
Connects to Proton Products CDi4 Display Unit
1 i-BUS
Ethernet TCP/IP Modbus is the default standard.
Connect to PLC via Industrial Protocol IP, ModBus, ProfiBus, ProfiNet.
1 WiFi
Connect to a PC or Mobile Device and use Proton Products Gauge App available for iOS and Android. Ideal for gauge configuration and diagnostics.
Laser Doppler
Laser Wavelength 790 nanometer (0.12") diameter beam.
Output Power 50 MW, the Nominal Ocular Hazard Distance* per beam,
2 beams in total is 175m (574ft).
Electrical and Operating Requirements
Power Supply
18-30 vdc
Power Consumption
25 Watts
Operating Temerature
5c-40c (41-104F)
Environmental Protection
IP 67
*See Accessories for High Temperature protection options
Size and Weight
Height
230 mm (9.1")
Width
140 mm (5.6")
Thickness
90 mm (3.6")
Weight
3kg (6.6lbs)
All Other Sizes
Height
140 mm (5.6")
Width
297 mm (11.7")
Thickness
93 mm (3.7")
Weight
4.5kg (9.9lbs)
SLRM150200 Only
